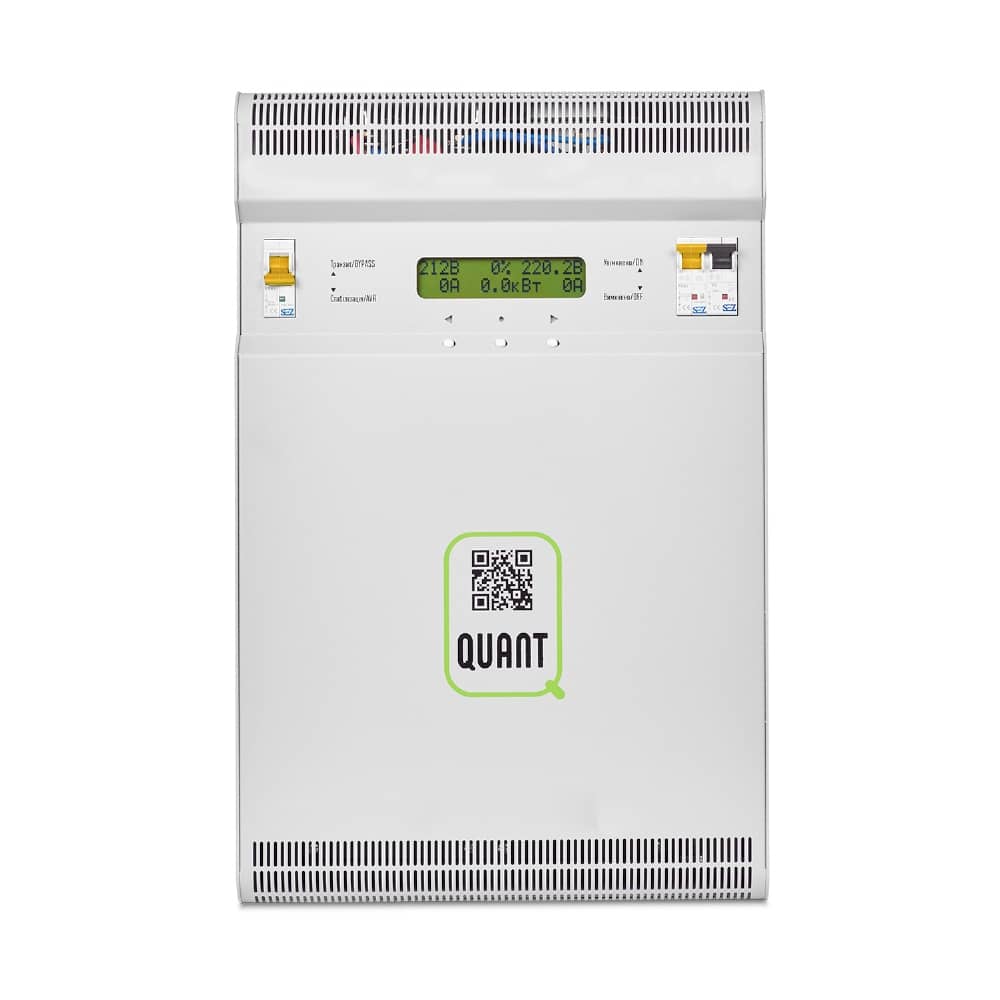

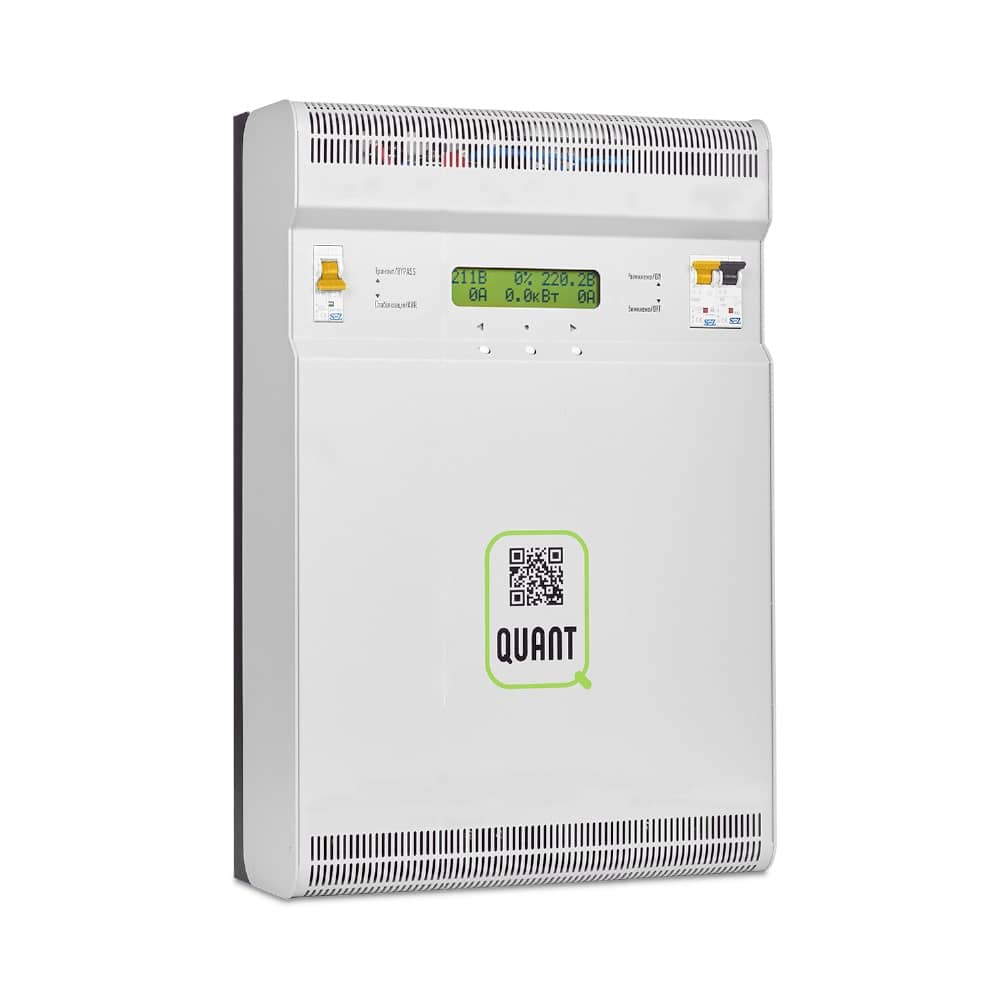

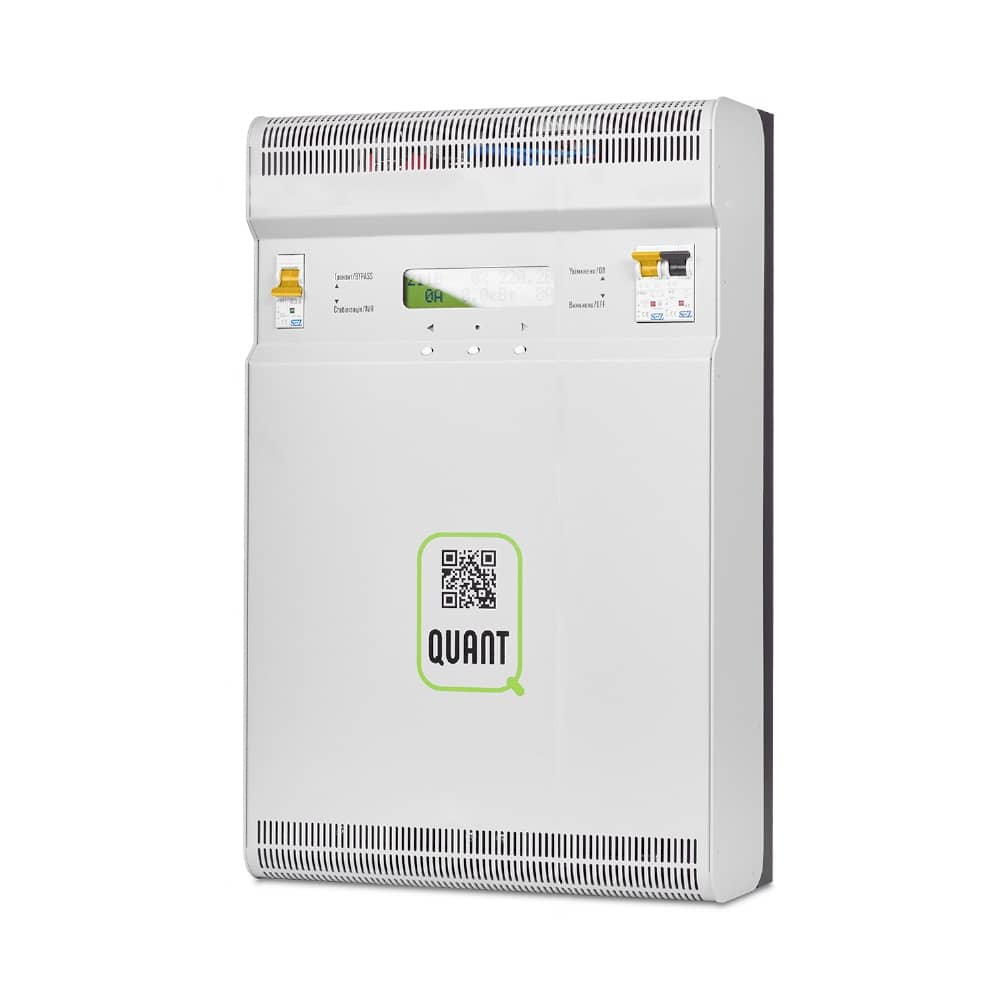

Quant-5.5 single-phase voltage regulator is an inverter voltage regulator with advanced protection and without energy accumulation.
The regulator catches all voltage spikes and surges, and no matter what happens at the input, the output will always be the nominal voltage – 220V or 230V. During the process of double conversion, all harmful effects that could fall on the load are eliminated.
Since the Quant-5.5 regulator is infinite, in comparison with the usual step regulator, it has no delay in voltage regulation at the output; we can say that Quant-5.5 is an instantaneous regulator, so even ordinary incandescent bulbs do not flicker.
Use the Quant-5.5 model for safe operation of the load in: apartment, house, cottage, office, as well as for joint work with solar power plants, if the total load power consumption does not exceed the nameplate power of the regulator.
Five main features of the model:
- Very quiet!
- Small weight and dimensions!
- Durable in operation!
- Contains interference filter and pulse absorber!
- Provides 100% reliability of load protection!
Purchasing a Quant-5.5 regulator would be a great choice!
|Regulation type||Inverter with advanced protection|
|Number of steps||There are no steps. Smooth adjustment.|
|Output power at 220V, kW||5,5|
|Output power at 110V, kW||2,75|
|Output voltage, V||220 or 230|
|Nominal input current, A||25|
|Overload current and short circuit, A||50|
|Off time with load >125%, sec.||10|
|Off time with load >150% – short circuit, sec.||1|
|Regulator accuracy, %||0.5|
|Input voltage range, V||90-350|
|Regulation range, V||90-350|
|Operating frequency range, Hz||45-50|
|Operating temperature range, °С||.+5 …+40|
|Humidity range, %||40…80|
|Delay before switching on, sec.||6|
|Number of phases||1|
|Reactive load current compensator function||Yes|
|Current limiting function||Yes|
|Soft start function||Yes|
|Power consumption, W||15|
|Dimensions, mm., HxWxD||435х250х125|
|Additional warranty, months||60|
|Country of origin||Ukraine, Zhytomyr|
|Country of brand registration||Ukraine|
|Goods manufacturer||LLC RPF QUANT-INGINEERING|
